Is it Possible to Create a Report for Concurrent Calls on a DMA?

Question:

How can we see concurrent DMA calls in Analytics?

Answer:

A panel can created that will allow you to see DMA concurrent calls.

To do this, please click 'Add Panels' in the usual way, and click 'Add Panel' for a Trend panel

Configure this panel as follows:

1. Select category: Capacity
2. Select metric: System Capacity
3. Select group: by System Name
4. Select chart option: Select your preferred char type
5. Add filter: Capacity (Metric System) contains DMA
6. Modify the title: DMA Concurrent Call Count
7. Panel Title: As appropriate

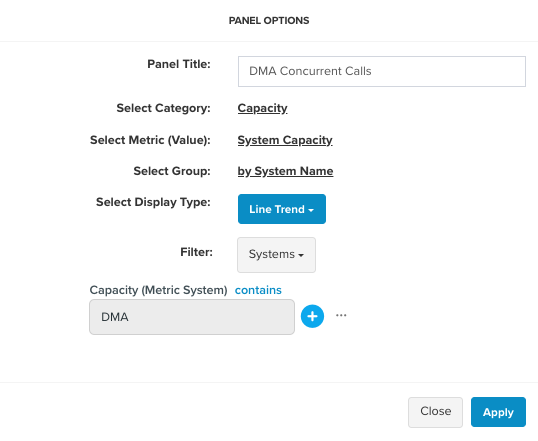

Your configuration should resemble the one below:

Click Apply save the definition.

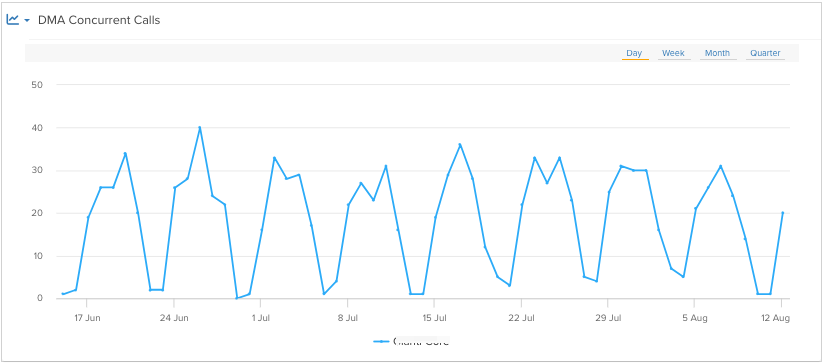

You should have a new panel like the one below:

Please note that the panel does not support click-through to the underlying data.
